It is time to talk again about Flow control and group replication. This time with a special eye on the use of Group Replication in the Kubernetes context. In this article we will dig a bit on how it works and what are the various side effects.

The problem

Recently I was refining the calculation I use in the MySQL calculator for Operator given I was constantly encountering a very serious problem with the Percona Server Operator.

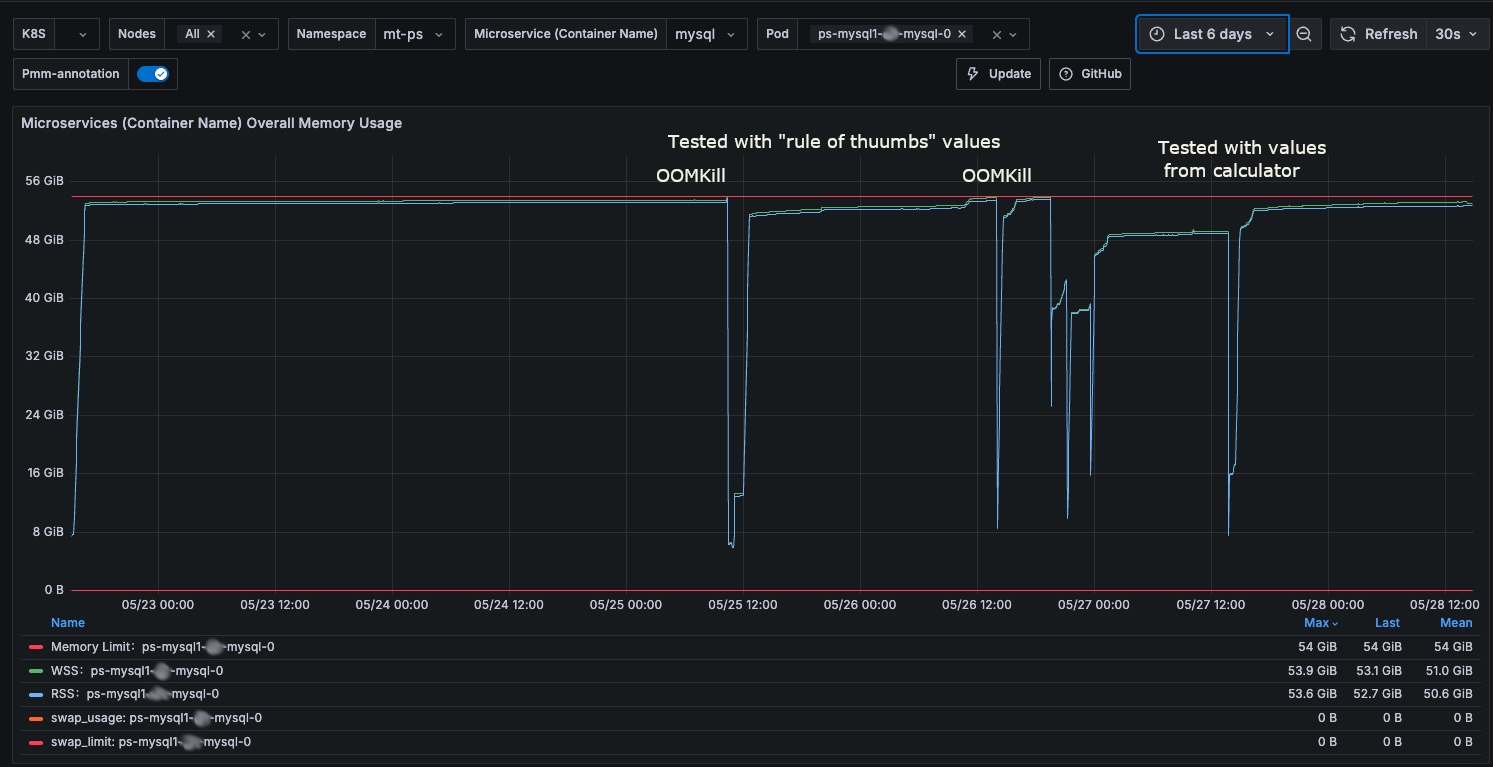

The problem is that when the deployment was/is serving a high level of traffic, it will, no matter what, end up in getting OMMKill by the K8 system.

This because the pod was gradually consuming more and more memory, reaching the memory limit set in the CR specification.

Now let me clarify a few things, to get straight to the facts.

Kubernetes itself does not OOMKill a pod for hitting its memory limit, the mechanism works as described below with mention on how Working Set Size (WSS) is calculated, and how OOMKills are triggered, and in the resource sections, the links to the official documentation and source code.

1. The Reality of OOMKills vs. Kubelet Evictions

It is crucial to distinguish between what the Linux kernel does and what Kubernetes does:

• OOMKilled (Exit Code 137): This is executed entirely by the Linux kernel's OOM Killer, not Kubernetes. When we set a memory limit in our Pod spec, Kubernetes translates that into a Linux cgroup constraint (memory.limit_in_bytes for cgroups v1, or memory.max for cgroups v2). If our container attempts to allocate more memory than this hard limit, and the kernel cannot reclaim any page cache (like inactive files), the kernel directly intervenes and terminates the process.
• Node-Pressure Evictions: This is where Kubernetes actively observes memory. The kubelet monitors the working_set_bytes metric to protect the node from running out of memory. If the node's memory drops below an eviction threshold, Kubernetes will actively evict pods to prevent the kernel from initiating a system-wide OOM kill.

2. How Working Set Size (WSS) is Calculated for the container

Kubernetes monitors container memory via cAdvisor, which is integrated directly into the kubelet. cAdvisor calculates the Working Set Size by taking the total memory usage and subtracting the inactive file cache (memory that the kernel can easily reclaim if it faces memory pressure).

Because active file caches and anonymous memory (like our application's heap) cannot be easily evicted, this working set metric is the most accurate representation of the memory your container is forcing the system to hold.

The Calculation & cgroups Evolution The core mathematical calculation is Memory Usage - Inactive File Cache, but how cAdvisor fetches this data from the Linux kernel depends entirely on your node's cgroup version. Modern cAdvisor relies heavily on the opencontainers/runc/libcontainer library to read these raw cgroup files:

• cgroups v1: cAdvisor starts with the raw usage from memory.usage_in_bytes and subtracts the reclaimable cache found under the total_inactive_file key.
• cgroups v2 (Unified): cAdvisor starts with the raw usage from memory.current and subtracts the reclaimable cache found under the inactive_file key.

The Underlying Code Logic While older versions used a static setMemoryStats function, modern Kubernetes branches handle this dynamically. The logic executes the following flow before reporting back to the kubelet:

1. Detects Version: It identifies whether the node runs cgroups v1 or v2 to determine the correct inactive file key name.
2. Fetch Usage: It pulls the raw memory usage from the container.
3. Subtract Cache: It looks up the inactive file value and safely subtracts it from the usage (including a safeguard to ensure the working set never drops below zero).
4. Report Metric: It sets this final calculated value as container_memory_working_set_bytes, which the kubelet then uses to decide if the node is under memory pressure.

Back to us

At the end the point is that if our pod reaches the limit and we ARE NOT using the new swap feature existing in Kubernetes, our pod will be brutally killed, and in 99% of the cases our production will suffer a lot. !Ops spoiler!

To clearly understand what was causing the issue about this memory consumption and having my calculator fail, I started to collect the information about the memory usage in MySQL itself.

SELECT EVENT_NAME,CURRENT_NUMBER_OF_BYTES_USED / 1024 / 1024 AS current_usage_mb FROM performance_schema.memory_summary_global_by_event_name WHERE EVENT_NAME like 'memory/%' and EVENT_NAME not like 'memory/performance%'  order by current_usage_mb desc limit 25;

Which will give you and output like this:

+---------------------------------------+------------------+
| EVENT_NAME                            | current_usage_mb |
+---------------------------------------+------------------+
| memory/innodb/buf_buf_pool            |   46398.92578125 |
| memory/group_rpl/GCS_XCom::xcom_cache |    1066.66179943 |
| memory/group_rpl/certification_info   |      92.45250702 |
| memory/innodb/log_buffer_memory       |      64.00096130 |
| memory/sql/TABLE                      |      49.90627003 |
| memory/innodb/memory                  |      34.68734741 |
| memory/innodb/ut0link_buf             |      24.00006104 |
| memory/innodb/lock0lock               |      21.40064240 |
| memory/mysqld_openssl/openssl_malloc  |       9.51009655 |
| memory/innodb/read0read               |       8.19496155 |
| memory/mysys/KEY_CACHE                |       8.00215149 |
| memory/innodb/sync0arr                |       7.03147125 |
| memory/innodb/ha_innodb               |       6.87006950 |
| memory/innodb/lock_sys                |       5.25009155 |
| memory/sql/log_sink_pfs               |       5.00003052 |
| memory/innodb/ut0pool                 |       4.00017548 |
| memory/sql/dd::objects                |       2.83031464 |
| memory/innodb/std                     |       2.72618866 |
| memory/innodb/os0file                 |       2.63054657 |
| memory/innodb/os0event                |       2.34302521 |
| memory/sql/TABLE_SHARE::mem_root      |       2.31734467 |
| memory/innodb/trx0trx                 |       2.22647858 |
| memory/temptable/physical_ram         |       1.00003052 |
| memory/sql/dd::String_type            |       0.94942093 |
| memory/innodb/btr0pcur                |       0.89743423 |
+---------------------------------------+------------------+

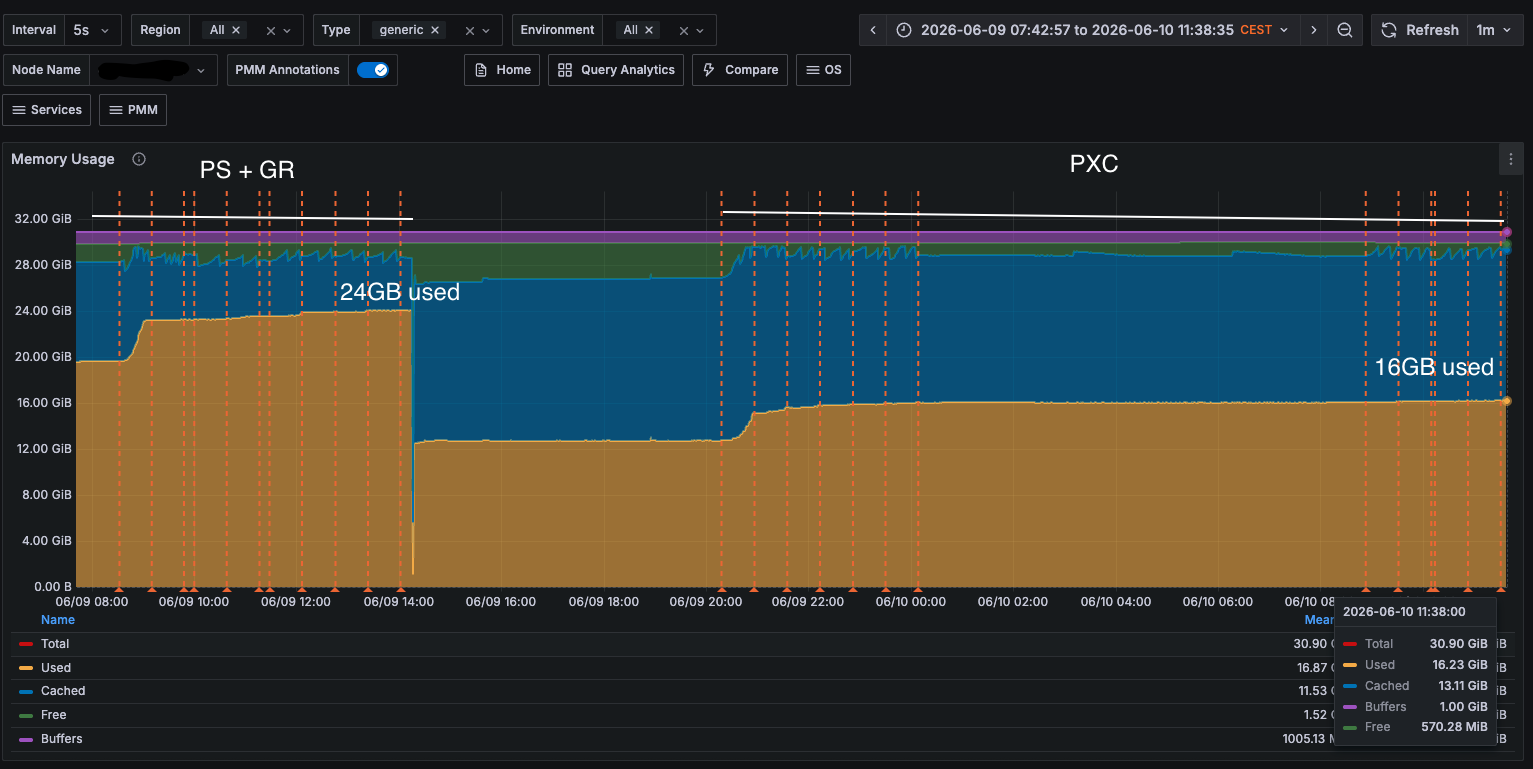

Plus I used PMM to collect memory information

To simulate the load I used the sysbench-tpcc (tpc-c derivate test) variant and run the tests simulating a load of 1024 threads against a cluster based on machine with 16 Core and 64Gb volumes ~3k IOPS, so not gigantic but not small.

The finding was almost immediate:

+---------------------------------------+------------------+
| EVENT_NAME                            | current_usage_mb |
+---------------------------------------+------------------+
| memory/innodb/buf_buf_pool            |   46398.92578125 |
| memory/group_rpl/certification_info   |    1431.67934418 | <constantly increasing
| memory/group_rpl/GCS_XCom::xcom_cache |    1066.63542366 |
| memory/sql/Gtid_set::Interval_chunk   |      95.52413940 |
| memory/innodb/log_buffer_memory       |      64.00096130 |
| memory/sql/TABLE                      |      48.17613125 |
| memory/innodb/memory                  |      35.08897400 |
| memory/innodb/ut0link_buf             |      24.00006104 |
| memory/innodb/lock0lock               |      21.40064240 |
| memory/innodb/read0read               |      14.86782837 |
| memory/mysqld_openssl/openssl_malloc  |      12.05916119 |
| memory/mysys/KEY_CACHE                |       8.00215149 |
| memory/innodb/sync0arr                |       7.03147125 |
| memory/innodb/ha_innodb               |       6.84074974 |
| memory/innodb/lock_sys                |       5.25009155 |
| memory/sql/log_sink_pfs               |       5.00003052 |
| memory/innodb/ut0pool                 |       4.00017548 |
| memory/sql/dd::objects                |       2.82012177 |
| memory/innodb/std                     |       2.72515869 |
| memory/innodb/os0file                 |       2.63054657 |
| memory/innodb/os0event                |       2.35884857 |
| memory/innodb/trx0trx                 |       2.22647858 |
| memory/sql/TABLE_SHARE::mem_root      |       1.83777618 |
| memory/innodb/trx0undo                |       1.26304626 |
| memory/mysys/lf_node                  |       1.08828735 |
+---------------------------------------+------------------+

Ok then … What is the certification info???

What is group_rpl/certification_info?

In MySQL, memory/group_rpl/certification_info is a Performance Schema memory instrument. It tracks the exact amount of RAM allocated to store the Certification Database (or Certification Info).

In Group Replication, nodes do not lock rows across the network while a transaction is executing. Instead, transactions execute locally and optimistically. When it is time to commit, the transaction undergoes a Certification Process to ensure no other concurrent transaction in the cluster has modified the exact same rows. The certification_info buffer is the in-memory hash map that makes this conflict detection possible.

1. What is it used for?

The certification_info structure acts as a tracking ledger for recently modified rows.

Here is how it works under the hood:

• The Key-Value Pair: It is fundamentally an in-memory dictionary. The key is the hash of a modified row (extracted from the transaction's "write set"), and the value is the Global Transaction Identifier (GTID) of the transaction that successfully modified it.
• Conflict Detection: When a new transaction attempts to commit, it broadcasts its write set and the "snapshot version" of the database it saw when it started. The certifier cross-references the incoming transaction's write set against the certification_info map.
• The Decision: If the certification_info shows that a row was modified by a newer GTID that the incoming transaction did not "see" when it started, a conflict is flagged, and the transaction is aborted. If no conflict exists, the transaction is certified, and the certification_info map is updated with the new write set and GTID.

The primary does not hold onto this memory out of stubbornness; it does so because purging that data too early would destroy the cluster's consistency in the event of a failover.

In Group Replication, garbage collection for the certification_info buffer is not triggered just because a transaction commits on the primary. It is triggered by a concept called the Stable Set.

Every node in the cluster periodically broadcasts a message to the rest of the group saying, "Here are the GTIDs I have successfully applied to my disk." The cluster then calculates a global low watermark. This watermark is the highest transaction GTID that every single member of the group has successfully applied. Garbage collection is only allowed to purge write-sets from the certification database that fall below this global watermark. To note that this purge is a synchronous operation during which writes are forbidden.

2. How the Apply Queue Stalls the Watermark

When a secondary node starts lagging, its applier queue grows. This means the secondary is receiving transactions from the network quickly, but its SQL thread is too slow to actually execute them and commit them to disk.

Because the secondary hasn't applied these transactions, it cannot report those GTIDs back to the group as "finished."

• The lagging secondary's local watermark stalls.
• Therefore, the global low watermark for the entire cluster stalls.
• Because the global watermark hasn't moved forward, the garbage_collect function on the primary (and all other nodes) says, "I am not allowed to delete any write-sets yet."
• As the primary continues to process new writes, the certification_info memory buffer grows continuously.

3. Why the Primary Cannot Purge Early

we might wonder: If the transaction is already committed on the primary, why does the primary care if the secondary has applied it? Why not just drop the write-set from its own memory?

The answer comes down to Failover Safety and Distributed Conflict Detection. GR is a shared-nothing, decentralized architecture. Even if you are running in Single-Primary  mode (keep this in mind will be important later), the underlying engine uses the exact same logic as Multi-Primary mode.

Here is why the primary is forbidden from purging that data:

• The Failover Scenario: Imagine our primary node crashes right now. The lagging secondary (which still has a massive apply queue) is immediately elected as the new primary.
• The Conflict Risk: As the new primary, it starts accepting new writes from your application. However, it still has thousands of old transactions in its applier queue that it hasn't written to disk yet!
• The Necessity of the Buffer: When a new write comes in, the new primary must check if that write conflicts with any of the pending transactions in its apply queue. It does this by checking the certification_info map. If the old primary had purged the global certification data early, the new primary wouldn't have the write-sets for those pending transactions. It would blindly accept the new write, causing a massive data conflict and breaking the replication group entirely.

Fine Marco, then what is the effect of this?

Well, drums roll …

… When a secondary node is elected as the new primary during a failover, it does not immediately open the floodgates to new writes. It keeps its super_read_only variable set to ON until it has completely drained its local apply queue of all transactions that were certified prior to the election.

This is an intentional design choice to guarantee that the new primary's state is completely consistent with the old primary before it starts accepting new data.

4. Immediate Write Rejections (No Built-in Queuing)

The most critical impact to understand is that the new primary does not queue or pause new incoming writes while it catches up. It outright rejects them.

If our application or proxy routes a COMMIT, INSERT, UPDATE, or DELETE to the new primary while it is still processing the old queue, MySQL will immediately throw an error back to the client:

ERROR 1290 (HY000): The MySQL server is running with the --super-read-only option so it cannot execute this statement

5. The "Brownout" Window (Write Outage)

Because of this behavior, a failover in MySQL Group Replication does not instantly restore write availability. Our cluster experiences a "brownout", a period where reads might succeed, but writes are entirely blocked.

The duration of this write outage is directly proportional to the size of the apply queue.

• If the secondary was fully caught up, write availability is restored in milliseconds.
• If the secondary was lagging by 50 minutes, your application will suffer a 50 minute write outage while the node applies the backlog.

6. Impact on Proxies (e.g., MySQL Router or ProxySQL)

If we are using a proxy layer to route your database traffic, the apply queue dictates how the proxy behaves during the transition:

• MySQL Router: It continuously monitors the cluster topology and the super_read_only flag. Even though the node has technically been elected primary, Router will not open the read-write port to it until the apply queue drains and super_read_only flips to OFF. Depending on your application timeouts, client connections will either hang waiting for a writable connection or fail completely.
• ProxySQL: Similar to Router, if it is configured to check for the read_only state, it will temporarily quarantine the new primary from the write hostgroup.
• HAProxy (in Operator): Monitor both Primary state and read_only state, but it expose the Primary to writes causing the application to fail (bug we need to fix)

7. Read Traffic and Stale Data

During this catch-up phase, the node will accept incoming SELECT queries (since it is still a valid database). However, because it is actively churning through the old primary's backlog, the data being read is temporarily stale.

If your application reads a row that is sitting in the apply queue but hasn't been committed to disk yet, it will get the old version of that row.

Why Flow Control is Critical

Because a large apply queue turns a seamless failover into a severe, application-breaking write outage, Group Replication includes the Flow Control feature.

Flow Control monitors the size of the apply queues across all secondaries. If a secondary starts lagging too far behind, Flow Control should actively throttle the write throughput on the current primary to allow the lagging node to catch up. It is essentially a trade-off: we accept a slight performance hit during normal operations to guarantee that your database recovers almost instantly during a failover.

However, this is not what really happens.

1. It is Reactive, Not Proactive (The Polling Blind Spot)

Flow control does not intercept and evaluate every single transaction in real-time. Instead, it relies on a periodic polling interval governed by group_replication_flow_control_period (which defaults to 1 second).

Once a second, the cluster checks the size of the apply queues and the certifier queues.

• The Vulnerability: If our application generates a massive spike of 50,000 writes in 500 milliseconds, the primary will happily accept and certify all of them. Flow control will not even notice the spike until the next 1 second polling interval hits. By the time it decides to apply a throttle, the damage is already done, and the secondary's queue is already overflowing.

2. The PID Controller's "Soft Brake" Math

When flow control does decide to throttle, it does not simply freeze the primary. It uses a PID (Proportional-Integral-Derivative) controller algorithm to calculate a "write quota" (the maximum number of transactions the primary is allowed to commit in the next second).

The PID controller is deliberately tuned to be gentle. It wants to gracefully degrade performance rather than cause immediate application timeouts.

• When the secondary's queue breaches the group_replication_flow_control_applier_threshold (default 25,000 transactions), the PID controller reduces the primary's quota incrementally.
• The Failure Point: If the primary's incoming write rate is astronomically higher than the secondary's disk IO capacity, this incremental "step down" in the quota is too slow. The primary is still allowed to write, say, 10,000 transactions per second, while the secondary is only applying 2,000. The queue continues to grow aggressively despite the throttle being "active."

3. The Concurrency Mismatch (Parallel vs. Serial)

This is often the silent killer that defeats flow control. Flow control makes mathematical assumptions about how fast the secondary should be able to apply transactions based on recent history.

However, the primary node might be executing writes using hundreds of highly concurrent threads. The secondary relies on the parallel applier to keep up. If the incoming workload suddenly includes transactions that cannot be parallelized, such as writes hitting overlapping rows, cascading foreign key updates, or DDL statements, the secondary's applier instantly drops from executing in parallel down to a single, serialized thread.

When this serialization happens, the secondary's applier rate plummets instantly. Flow control, which only checks in once a second and adjusts gradually, cannot brake the primary fast enough to compensate for the secondary suddenly dropping to a crawl.

What can we do?

At the moment of writing there are only two things that can be done.

1. Make Flow control more aggressive
2. Increase the number of replication appliers

1. Making Flow Control More Aggressive

We can configure Flow Control to be a bit more aggressive. It will still remain a suggestion but a strong one.

How it works (The Configuration):

• Lower the Threshold: By reducing group_replication_flow_control_applier_threshold (default is 25,000) to something like 1,000 or 500, we force the PID controller to kick in almost immediately when a spike occurs.
• Remove the Safety Net: By keeping  group_replication_flow_control_min_quota to 0 (default), we remove the minimum write guarantee. If the secondary falls behind, Flow Control is allowed to throttle the primary's writes down to zero, also if this will never happen.
• Increase the Sensitivity: We can tweak the PID controller's math (using the derivative and proportional tuning variables) to react much more aggressively to queue growth.       group_replication_flow_control_hold_percent=100       group_replication_flow_control_release_percent=5

The reality check, does it work?:

If the expectation is to have a rigid control over the applier queue on the lagging secondary, then the answer is NO. No matter what, at the moment flow control is not designed to act as we are used to in PXC (Percona Xtradb Cluster), where we have a rigid control of the pending queue also at the cost of delaying the writes. In Group Replication  the Flow Control will never bring the write to 0, the unfortunate aspect is that the mechanism is not enough to keep the queue under control.

2. Increasing Replication Appliers

To help the secondary chew through the queue faster, we can increase the number of parallel threads it uses to write to disk.

How it works: We can increase the replica_parallel_workers (formerly slave_parallel_workers) setting. GR is exceptionally smart about this. Because of the certification process we discussed earlier, GR already knows exactly which transactions modify which rows. It uses a writeset-based dependency tracker to safely hand off non-conflicting transactions to multiple worker threads simultaneously. The formula that is normally used to calculate the number of replication workers is to set 2.5 workers for each available core. IE if we have 14000m CPUs in our CR (K8) then we can assign ~35 workers, this is definitely higher than the default value of 4.

The reality check, does it work?:  Yes, but only if our workload allows it.

• The Catch - The Serialization Wall: Parallel appliers only work if the transactions do not conflict. If our application has 50 concurrent threads all trying to update the same "inventory count" row, or updating a highly contentious table, those transactions cannot be parallelized. The secondary's coordinator thread will see the row-level conflicts and force those transactions to wait in line and execute sequentially. We could allocate 128 parallel workers, but 127 of them will sit idle while one thread does all the work.
• The Catch - Context Switching: More threads do not magically create more disk IOPS. If we set the workers too high (e.g., beyond the physical CPU core count or disk IO capacity), the secondary's InnoDB engine will spend more time context-switching and fighting over internal mutex locks than actually committing data. In many cases, over-allocating parallel workers actually slows down the apply rate.

Do we have any conclusions?

1. If HA is the goal, enforce Strict Flow Control

If our absolute top priority is High Availability, specifically achieving a near-zero Recovery Time Objective (RTO), we must configure an aggressive flow control.

• The Logic: Fast failovers require small apply queues. To guarantee a small apply queue, we must strictly throttle the primary the millisecond the secondary starts to lag.
• The Trade-off: we are protecting the cluster's failover readiness at the expense of application write latency. If there is a massive write spike, our application will face timeouts and connection errors, but if the primary server suddenly catches fire, our database will recover and elect a new primary almost instantly.

The problem is that Group Replication is not able to act like that today, this is something we eventually need to implement to have better HA.

2. If Performance is the goal, relax Flow Control

If our top priority is keeping the application fast and ensuring COMMIT latencies remain extremely low, we should relax flow control or rely on the generous defaults.

• The Logic: By relaxing flow control, we allow the primary to run at the absolute maximum speed its local disks and CPU allow. It does not care if the secondaries fall behind. Our application users remain happy and experience zero throttling.
• The Trade-off: We are accepting severe risks to your HA posture. If the primary crashes while the secondaries have a massive apply queue, we will suffer a long write outage (the brownout) while the new primary catches up. Additionally, we are accepting the risk that the certification_info memory buffer will grow significantly on the primary and eventually have the pod OOMKilled .

3. Is this not what Asynchronous replication with semy-sync offers?

1. The Similarities

If we look purely at how a single transaction flows and how a failover behaves, GR and Semi-Sync look like twins:

• The Durability Guarantee: Semi-Sync: The primary waits to commit until at least one secondary confirms it has received the transaction and written it to its local Relay Log.
  • GR: The primary waits to commit until a majority quorum of nodes confirm they have received the transaction, certified it, and written it to their local relay logs.
• The Failover Delay (The Queue):  In both systems, the secondary receiving the data does not mean the secondary has applied the data to its InnoDB tables.
  • If a crash happens, both systems require the new primary to completely execute its pending queue (Relay Log for Semi-Sync, Apply Queue for GR) before it is safe to accept new writes.

2. The Crucial Differences

If they behave so similarly, why use GR at all? The differences lie entirely in automation, consensus, and split-brain protection. Semi-Sync is just a data transport mechanism; GR is a full state-machine cluster.

Here is what GR gives you that Semi-Sync does not:

• Automatic Election and Orchestration:
  • Semi-Sync: If the primary dies, Semi-Sync does nothing. The cluster sits there broken. You must rely on external tools (like Orchestrator or manual DBA intervention) to detect the crash, pick the most up-to-date secondary, wait for its relay log to apply, disable read_only, and re-point the application.
  • GR: The cluster detects the failure natively. The remaining nodes use Paxos consensus to elect a new primary automatically, manage the queue drain natively via the super_read_only flip we discussed, and self-heal.
• Split-Brain Protection (Network Partitions):
  • Semi-Sync: If our network splits in half, an external failover tool might accidentally promote a secondary while the old primary is still alive and accepting writes. We now have a split-brain, and our data is permanently corrupted.
  • GR: GR enforces strict quorum. If a network split happens, the side of the network with the minority of nodes will automatically fence itself off and refuse all writes. Split-brain is mathematically prevented.
• The Certification Database:
  • As we established, GR requires the certification map to ensure the new primary doesn't accept writes that conflict with its unapplied queue. Semi-Sync does not have this; it relies entirely on the external failover tool to guarantee no writes touch the new primary until the relay log is 100% applied.

3. Final observation

If we are using Single-Primary GR with relaxed flow control, we have essentially built a highly-automated, consensus-driven version of Semi-Sync replication.

We have the exact same apply-queue bottleneck during failover, but we have traded the need for external orchestrator tools for built-in Paxos consensus and native split-brain protection.

Conclusions (for real)

When we run MySQL on a traditional, dedicated Virtual Machine, memory limits are "soft." If the certification_info database explodes and consumes an extra 10GB of RAM because of the applier lag, the Linux OS might start aggressively swapping inactive pages to disk, but the MySQL process usually survives. Performance degrades, but the database stays online.

In Kubernetes, memory limits are "hard." As we discussed earlier, Kubernetes enforces pod memory limits via cgroups v2 (memory.max). The Linux kernel's OOM Killer has no understanding of database quorum, failover states, or apply queues. It only sees math: Working Set Size > memory.max = Terminate Process (Exit Code 137).

The Chain Reaction of Relaxed Flow Control in k8s

If we prioritize "performance" by relaxing Flow Control in a Kubernetes environment, we are essentially setting a ticking time bomb. Here is the chain of events:

1. The Spike: Our application experiences a massive write spike.
2. The Queue: The secondary pod's disk cannot keep up, and its applier queue grows to 1,000,000 transactions.
3. The Memory Sprawl: Because the queue is large, the global low-watermark stalls. The Primary pod is forbidden from garbage collecting the certification_info map. The in-memory hash map balloons in size.
4. The Execution: The memory.current metric will reach the memory.max, kernel will trigger the OMMKill process. First action will be to try to free the page.cache related to the process. If the purge is successful and the memory.current is less than memory.max then the process will persist, otherwise the kernel will kill it. We can use the WSS metric to predict a successful OMMKill. The Primary pod's Working Set Size (WSS) breaches its Kubernetes memory limit, this is a fair estimate not an absolute value.
5. The Catastrophe: The Linux OOM Killer instantly assassinates the Primary MySQL process.

Because we tried to avoid a few seconds of write latency by keeping relaxed Flow Control, we inadvertently caused a hard crash of the primary database pod, with long write downtime.

The Architectural Law

Therefore, here is my statement as architectural law for containerized environments: In Kubernetes, High Availability and Pod stability are so intrinsically linked that Flow Control must act as hard as it can to cap the apply queue.

• We cannot allow unbounded memory growth in a container. The only way to bound certification_info memory is to bound the apply queue.
• The only way to bound the apply queue is with strict, aggressive Flow Control.
• Increasing the number of replication appliers helps but is not the conclusive answer.

In a Kubernetes environment, we must tune group_replication_flow_control_applier_threshold to a strict, low number, and accept that during massive traffic spikes, our application will experience write throttling. It is infinitely better for our application's connection pool to wait 2 seconds for a COMMIT to succeed than for the primary database pod to be violently OOMKilled by the kernel, and have to wait for minutes or hours to recover write capabilities.

Note

Just as a mention this is exactly how Percona Operator with Percona Xtradb Cluster works. To be more specific, PXC and in general solutions based on Galera have a Flow Control mechanism that enforces the queue to be inside hard limits. While this more invasive control may be noticeable at application level, it guarantees that the other nodes are not lagging behind the primary and this is why it is a stronger HA solution in the Kubernetes environment.

Reference

https://github.com/Tusamarco/mysqloperatorcalculator

Managing Resources and OOMKills: Resource Management for Pods and Containers

(This page details how memory limits are enforced reactively by the Linux kernel via OOM kills).

How WSS triggers Evictions: Node-pressure Eviction

(This page explicitly details how the kubelet uses the memory.available signal, which is derived from node capacity minus the working set size).

Latest changes. Pointer to the code

Swap Memory Management (Core Concepts & Configuration): https://kubernetes.io/docs/concepts/cluster-administration/swap-memory-management/

Overview

When building high-availability MySQL environments, the choice between MySQL Group Replication (GR) and Percona XtraDB Cluster (PXC) often comes down to how they handle the eternal database dilemma: data consistency versus performance.

While both provide "synchronous-like" replication, they approach the problem of stale reads—reading data that has been committed on one node but not yet applied on another—in distinct ways. Understanding these differences, and the performance penalties associated with fixing them, is critical for any production environment.

Technology Overviews

MySQL Group Replication (GR)

Group Replication is the native, albeit more recent, high-availability solution built by Oracle for MySQL. It is based on a distributed state machine architecture and uses the Paxos consensus protocol.

• Mechanism: When a transaction is committed, it is sent to all group members. The members must agree (consensus) on the order of transactions. Once a majority agrees, the transaction is "certified" and committed on the originator.
• Replication Type: Virtually synchronous. The consensus ensures the data is received and ordered across nodes, but the actual applying of the data to the database happens asynchronously in the background.

Percona XtraDB Cluster (PXC)

PXC is an open-source enterprise solution based on Percona Server for MySQL and the Galera Replication library, which is the first and most mature virtually synchronous solution for MySQL.

• Mechanism: When a node commits a transaction, it sends it to all other members of the Primary component (active group). All nodes must certify the transaction (check for conflicts), this is done on each node in the cluster, including the node that originates the write-set, before the originating node can finalize the commit.
• Replication Type: Strictly synchronous (up to the certification level), asynchronous afterward. If the certification test fails, the node drops the write-set and the cluster rolls back the original transaction. If the test succeeds, however, the transaction commits and the write-set is applied to the rest of the cluster.

The Battle Against "Stale Reads": Why It Matters

The most critical distinction for developers is whether a SELECT query on Node B will immediately see the INSERT just performed on Node A.

In a distributed system, there is a microsecond-to-millisecond gap between a transaction being globally ordered (everyone knows it happened) and being locally applied (the data is physically readable in the table). Reading executed on a secondary during this gap results in a stale read.

Why is avoiding stale reads so critical?

While a stale read might just mean a user temporarily sees their old profile picture after updating it, in many business cases, it breaks the application's core logic:

1. Financial Transactions: A user deposits $100 on the Primary node and immediately refreshes their balance page, which reads from a Replica. If the read is stale, the balance hasn't updated. The user panics, thinking their money is lost.
2. E-commerce & Inventory: A customer buys the last item in stock. The next user immediately loads the product page. A stale read tells the second user the item is still available, leading to a cancelled order and a frustrated customer.
3. Security & Access: A user changes their password or updates a critical permission. If the next authentication request hits a node lagging by just a fraction of a second, their valid login might be rejected, or a revoked session might still be active.

To prevent these scenarios, we must tell the database to enforce strict consistency. But how do GR and PXC handle this, and what does it cost?

Consistency Controls Comparison

Both Group Replication and Percona XtraDB Cluster provide built-in mechanisms to enforce consistency and eliminate stale reads when your application demands it. However, they approach this problem using entirely different variables and distinct levels of granularity. The table below breaks down the specific controls each technology offers, highlighting exactly what it takes to force a node to serve fresh data.

The True Cost of Being Consistent

If we know stale reads are bad, why don't we just enforce strict consistency everywhere?

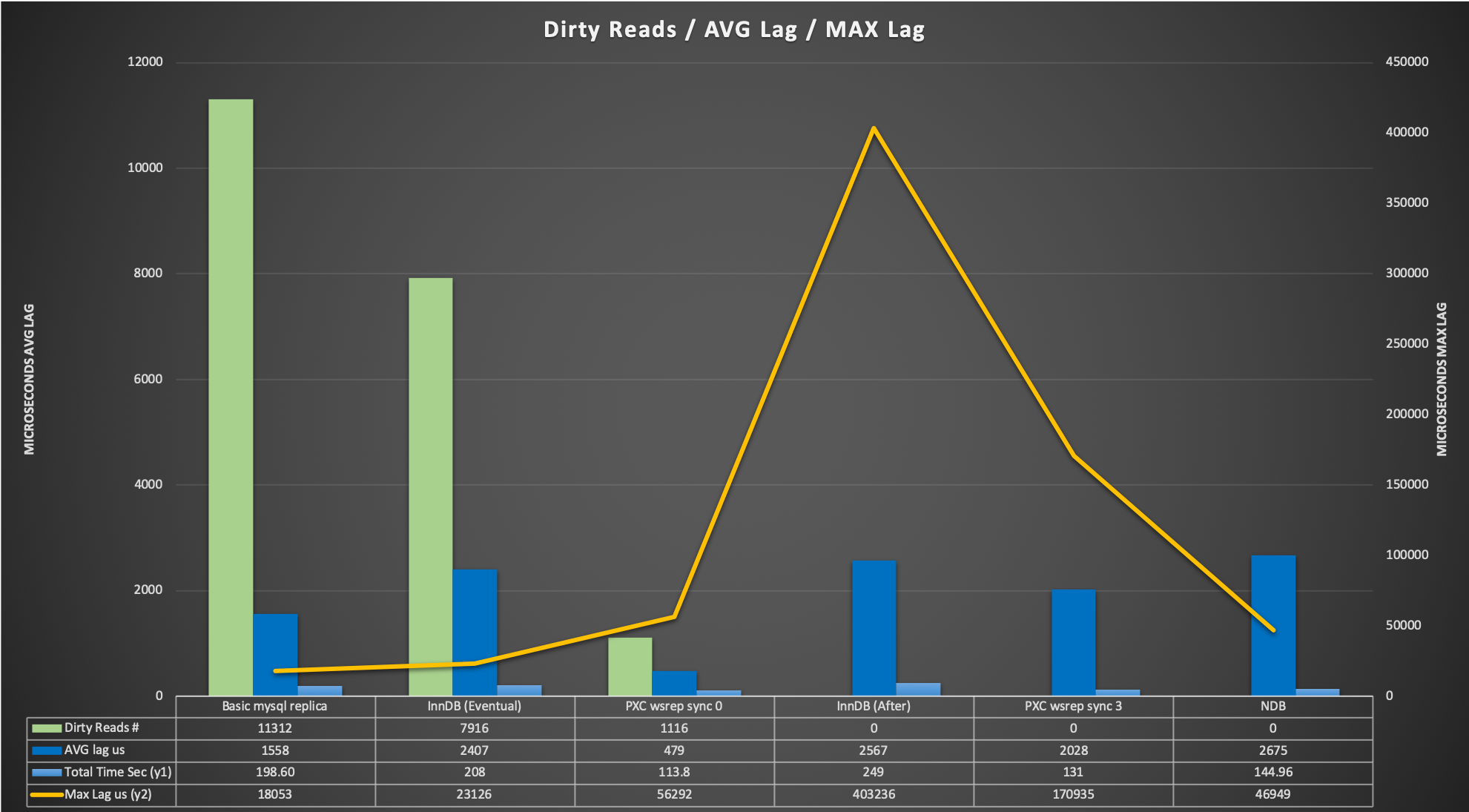

An image can help to understand:

Because in distributed databases, consistency is incredibly expensive. To test this, we used a 3-node internal lab environment to run a Sysbench-based TPC-C derivative test (50/50 read/write split, running for 600 seconds, scaling from 1 to 1024 threads).

You can find the detailed machine specifications here. The benchmarks were executed using a TPC-C derivative test based on sysbench. Finally—and crucially—you can review the configuration files used for the tests. I maintained the same baseline MySQL configuration across the board, only adjusting the parameters specific to each replication technology.

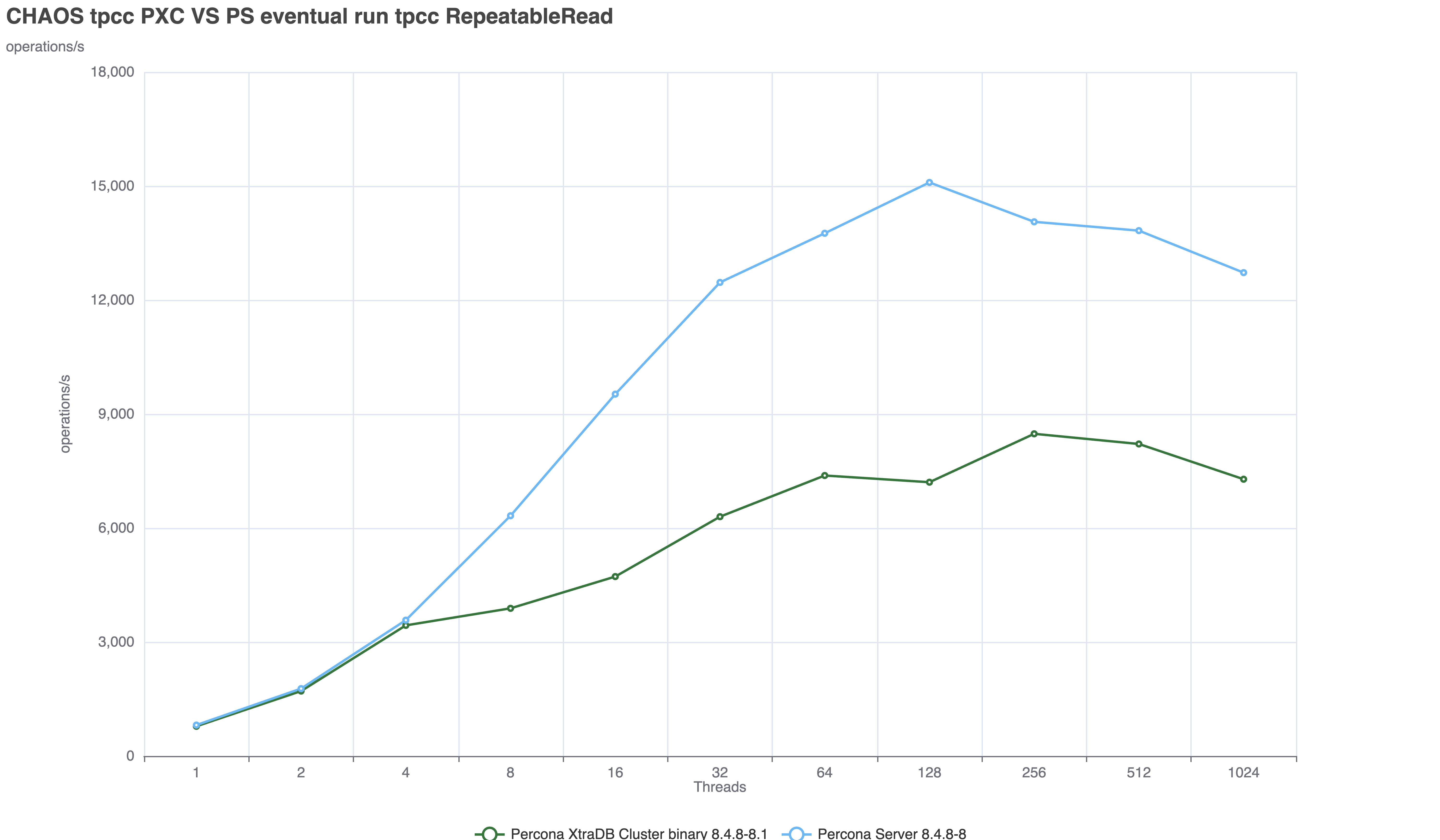

Scenario 1: Default (Relaxed) Consistency

(GR = EVENTUAL, PXC = wsrep-sync-wait 0)

I want to remind, that MySQL CE and Percona Server are running using Group Replication, while PXC is using galera.

With default settings, both systems allow stale reads.

Both technologies scales well up to 128 threads:

• Group Replication performs exceptionally well, handling up to 15K operations/sec before dropping off after 128 threads.
• PXC (Galera) is slightly less efficient at peak but scales very nicely and predictably.

At this level, the lag between the moment of commit and the moment the server returns the answer is minimal. But we are entirely exposed to stale reads.

Scenario 2: Enforced Consistency (The Cost)

(GR = AFTER, PXC = wsrep-sync-wait 7)

When we configure the servers to prevent stale reads, the systems must wait for transactions to be fully applied before returning a read. This is where the architectural differences become glaringly apparent:

• PXC (Galera): Performance drops but not too much from a peak of ~9K ops/sec (in the previous test)  to roughly ~8.5K ops/sec. This is a hit but not huge and the database remains highly functional and stable.
• Group Replication: Performance catastrophically drops from ~15K ops/sec (in the previous test) to a staggering ~3.8K ops/sec.

This is the crucial takeaway

Enforcing strict consistency in Group Replication results in a massive ~75% performance penalty. The latency between the commit and the server response increases significantly compared to PXC.

The intermediate way

There is another approach which is to inject the higher consistency only when it is really needed.

The Solution: Session-Level Consistency You do not need, and should not use, full consistency at the global level for general cases. Instead, force consistency only when and where it is critical.

While for Group Replication there is no support for SQL injection hints like SELECT /*+ SET_VAR(...) */, you can enforce this at the session level right before a critical read:

SET SESSION group_replication_consistency = 'AFTER';
-- OR for PXC:
SET SESSION wsrep_sync_wait = 7;

To note that  PXC offers more flexibility and you can use hints:

select /*+ SET_VAR(wsrep_sync_wait=7) */ @@session.wsrep_sync_wait ,@@global.wsrep_sync_wait;
+---------------------------+--------------------------+
| @@session.wsrep_sync_wait | @@global.wsrep_sync_wait |
+---------------------------+--------------------------+
|                         7 |                        0 |
+---------------------------+--------------------------+

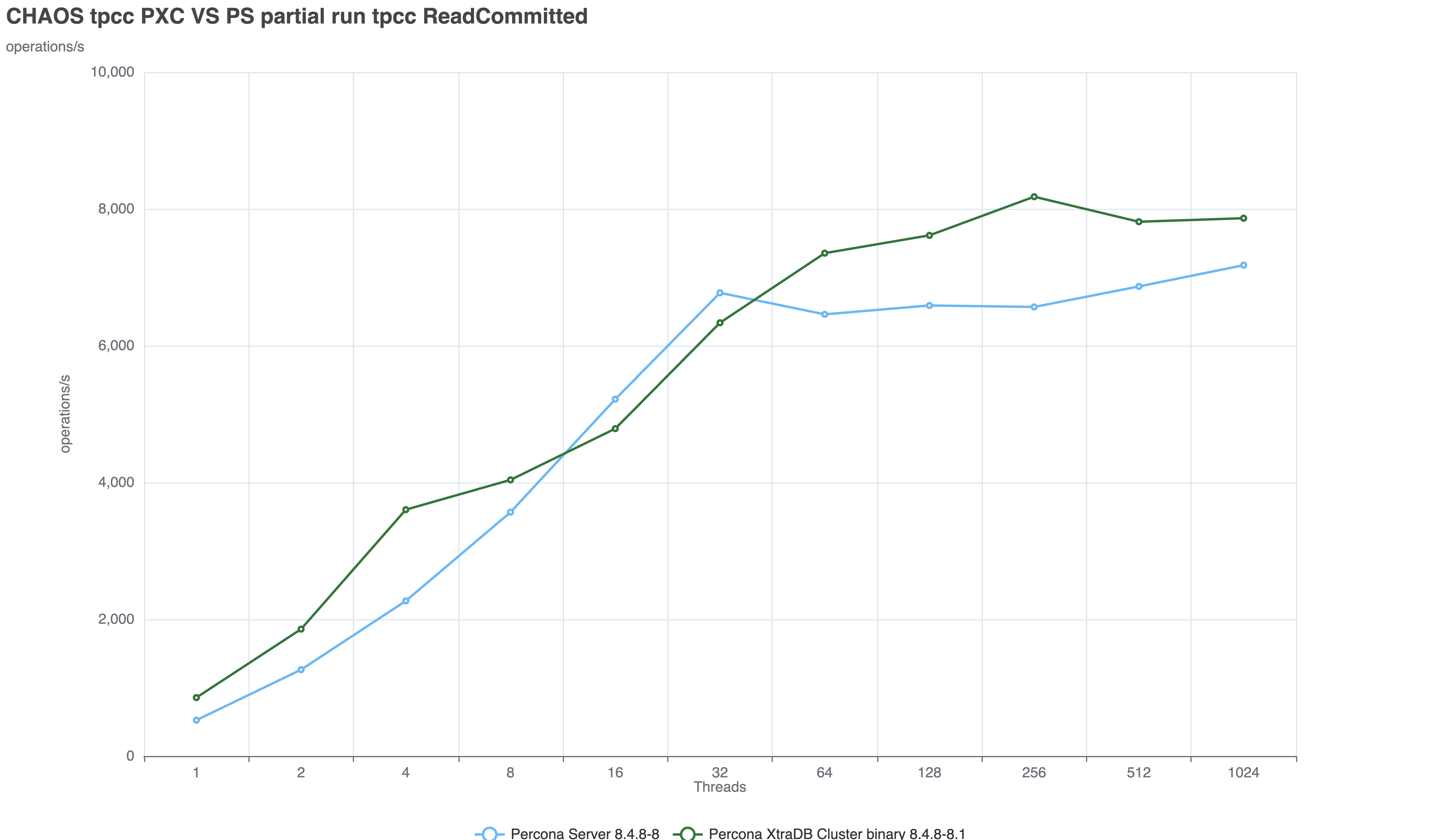

By isolating these variables to specific sessions (like the immediate redirect after a password change or a checkout process), you ensure data integrity exactly where the business requires it, while allowing the rest of your application to enjoy the high-speed performance of relaxed consistency.

PXC: The performance drop is minimal and the solution is able to provide a consistent delivery with nice scalability up to 256 threads.

Group Replication: The solution suffers from a significant drop, not as if we set the AFTER condition at global level, but still we see a drop of ~52%.

Comparing the two solutions we can see that PXC is able to deal with the additional requested consistency better.

Additional differences

But these are not the only differences we can immediately see. Performing a comparison about resources utilization, we can see that while both solutions move the same amount of data as IO operations:

Yes, for exactly the same load and traffic Group Replication consumes 8GB more than PXC, which in this environment represents 26% memory more, over total available.

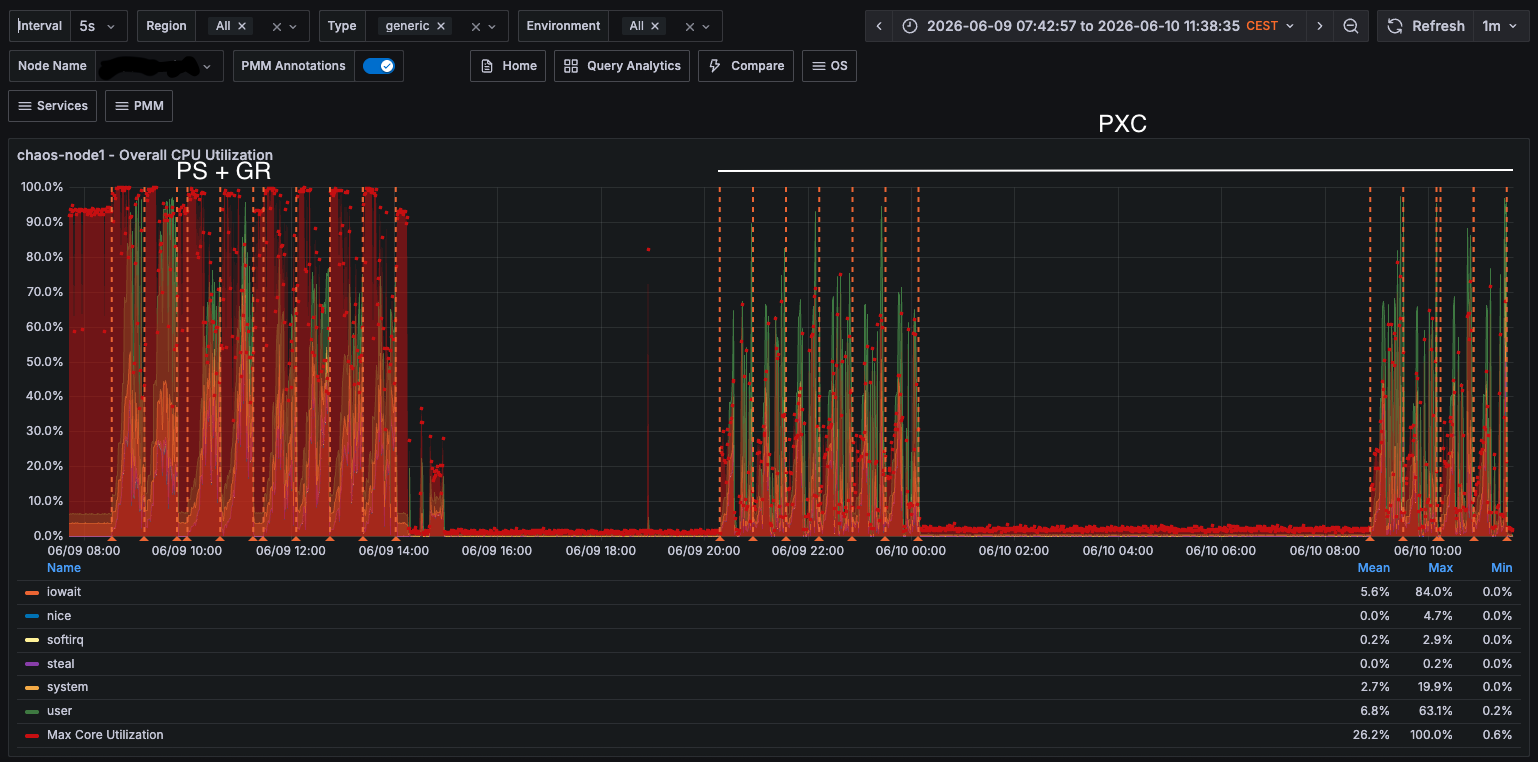

Cost that is reflected also as CPU utilization.

Conclusion: How to Survive the Cost

How impactful is enforcing strict consistency at a global level in a production environment? Massively. If you blindly enforce strict consistency globally without understanding your architecture, you will decimate your database throughput. Here is the reality of how the two solutions handle that tax:

• The Group Replication Reality: By default (using EVENTUAL consistency), MySQL Group Replication behaves essentially as semi-synchronous replication paired with an automated topology manager (see The Failover Brownout: Rethinking High Availability in MySQL Group Replication). The Primary is allowed to forge ahead and serve traffic even if the Secondaries are lagging significantly behind. The moment you demand strict consistency, the Primary is violently tethered back to the rest of the cluster, and its performance drops off a cliff as it waits for the slowest node.
• The PXC Advantage: Percona XtraDB Cluster (PXC) absorbs the "consistency penalty" much more gracefully. While varying consistency levels exist in PXC, adjusting them does not cause the same dramatic throughput shock seen in MGR. This is because PXC enforces a virtually synchronous, high-consistency baseline from the start. It simply does not allow the node receiving writes to deviate too far from the rest of the cluster. You pay a baseline performance tax upfront, but in exchange, you get guaranteed, ironclad High Availability out of the box.

The Final Verdict Modifying consistency values at the global server level should only be done after rigorous load testing and a complete understanding of the performance tax you are about to pay.

Ultimately, it comes down to choosing the right tool for your specific SLA:

• If your architecture demands a true, virtually synchronous solution with strict High Availability out of the box, PXC is the purpose-built engine for the job.
• If you are looking for a highly automated, semi-synchronous solution, Group Replication delivers excellent default performance—but tuning it to mimic PXC's strict consistency will cost you heavily in throughput.

References

https://www.google.com/url?q=https://mariadb.com/docs/galera-cluster/galera-architecture/certification-based-replication&sa=D&source=docs&ust=1777342808813139&usg=AOvVaw3SAf2g7NO9d681ZJ0VVEMB

https://docs.percona.com/percona-xtradb-cluster/5.7/wsrep-system-index.html#wsrep_sync_wait

First of all, I want to say a huge thank you to Frederic Descamps and the entire team who worked on the MySQL Belgian Days. I was thrilled to see the high number of presentations and the excellent quality across the board. We had two rooms packed with attendees, and the event was simply great. It was also incredibly productive to finally reconnect with so many people in the community face-to-face.

Presentation-wise, I was really impressed by Vitor Oliveira (Huawei) and his talk, "Beyond Linear Read-Ahead: Logical Prefetching using Primary and Secondary Indexes in InnoDB." I found the presentation and the work behind it fascinating. It perfectly explained something that I, along with several colleagues, had empirically proven in the field regarding InnoDB old pages and their impact on performance. I strongly suggest reviewing this presentation.

Another highly interesting talk, even if I feel its full power wasn't grasped by everyone in the room, was Arnaud Adant's session on MySQL Binary Log Analytics. The level of detail we can dig into and the way he handled the binlog was excellent. It was a great demonstration of how a well-known topic like the binlog can still hold a few surprises and remain highly relevant, especially when looking at real-world, large-scale scenarios.

During the Belgian Days, I also received the MySQL Legend award, which was totally unexpected for me. It was so unexpected, in fact, that after the final Rockstar nomination, I actually walked out of the room and missed Fred announcing my name! In pure Grinch style, Fred had to come out and drag me back in. I was so embarrassed here is the video of my momentary shame.

Now, what about FOSDEM? Well, FOSDEM is chaos, as we all know, and nobody expects anything less. However, this year we had a single database room for just one day. That meant trying to cram a whole universe into a single jar. As a result, the room was completely full, but the speeches were, at least for me, a bit too high-level and generic. I understand that was the intention given the constraints, but we need to keep this in mind for the future. Ultimately, I wasn't really impressed.

The day after, we had the MariaDB Day, which featured some interesting talks, specifically focusing on what is coming next for MariaDB. I had a few great discussions there and hope we will be able to collaborate when performing future tests.

The Summit for the MySQL Community

Last but not least, on Monday, February 2nd, we held the Summit for the MySQL Community. The event was an open discussion about how we, as a community, can work together to keep the MySQL ecosystem not just alive, but thriving and effective. It was an excellent meeting featuring people from AWS, Bloomberg, Booking, Canonical, WordPress, Oracle, Percona, MariaDB, and more. I don't have the full list, but it was amazing to see everyone together and willing to collaborate.

What became clear to everyone is that our scope is the same. No matter what company we come from, we want to ensure the MySQL/MariaDB/Percona/Whatever-flavor ecosystem continues to meet user needs and expands to tackle upcoming challenges. To do this, we need to focus on improving community interaction, code sharing, and evolution, without getting derailed by useless debates about who is the latest shining rockstar.

The intention is to do this together, Oracle included, assuming they take the right steps. In this regard, there is an open letter to Oracle that we are asking everyone to read; if you agree with its principles, please sign it.

Looking Forward: The Foundation and Ecosystem

Finally, I want to wish the best of luck to Fred (LeFred), who has decided to move on from Oracle and join the MariaDB Foundation, as he announced in his recent blog post. However, I also want to take a moment to answer the question he posed in that post:

"There is an initiative to create a foundation to ‘save’ MySQL, but doesn’t such a foundation already exist? There is a viable alternative for MySQL users: MariaDB. It offers more features, is ready to innovate further, and welcomes your contributions. Let’s work together!"

To answer Fred's question directly: No, that specific, overarching foundation does not quite exist yet and that is exactly what became so clear during Monday's summit. The fact that the MariaDB Foundation is there is fantastic, and we all view it as a vital piece of the larger puzzle we debated.

However, we also recognize that no single entity or fork can accomplish this broader mission alone. The goal of this new foundation initiative isn't to compete with MariaDB, but to build a unified, vendor-neutral space that lifts up the entire ecosystem.

So, let us stay focused on the greater good. Rather than trying to shift entirely into one court or the other, let's build a truly collaborative foundation where all flavors and contributors can thrive together. We have a lot of work ahead of us let's do it side by side.

I have a curse. My curse is curiosity.

Here in Percona I found one person that is very “dangerous” for me, and he and I also share the same first name, well almost, Marcos Albe.

Marcos is a smart guy with a lot of ideas, and he is not shy to share them. One day we were talking about sysbench, and he mentioned to me: you know it would be nice to have a test for joins in sysbench. I wonder why we don’t have it; it will be so useful to identify regressions in that area.
You see where this is going right? He put that in my mind, luckily I was busy with other stuff and I forgot. Until one day. That day I had to take a more in-depth look at some claims about joins performance regressions. In that moment Marcos voice comes back as an echo resonating in my mind … it would be useful to identify regressions…

That’s it. Ok let’s do it, let’s build this joins test and see how it goes, and shut Marcos up.

I used sysbench as an engine but then I diverged a lot while implementing the test in lua. My idea was to build a simple test but got trapped in the mechanism and (never ask AI) at the end I came up with 41 different tests and a quite complicated table(s) definition.

Let’s see both together.

Table(s) structure

In the new test we have two different sets of tables, the main table and the level table. The main table name can be renamed as you like using the usual sysbench parameter table_name, the level table name is fix levelX and for now you have queries with only one level or all of them. Already planning to make this customizable but for now it is like that.

The main table structure is as follows:

CREATE TABLE `%s%d` (
      `id` %s,
      l1_id INT,           -- Foreign key to level1.id
      l2_id INT,           -- Foreign key to level2.id
      l3_id INT,           -- Foreign key to level3.id
      l4_id INT,           -- Foreign key to level4.id
      l5_id INT,           -- Foreign key to level5.id
      -- Numeric data types
      small_number SMALLINT,
      integer_number INT,
      myvalue BIGINT,
      decimal_number DECIMAL(10, 2),
      float_number FLOAT,
      -- String data types
      char_field CHAR(10),
      varchar_field VARCHAR(255),
      color VARCHAR(50),
      continent VARCHAR(255),
      uuid VARCHAR(36) CHARACTER SET latin1,
      uuid_bin BINARY(16),
      text_field TEXT,
      -- Date and time data types
      datetime_field DATETIME,
      timestamp_field TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
      year_field YEAR,
      -- Binary data types
      binary_field BINARY(50),
      varbinary_field VARBINARY(255),
      -- Special data types
      enum_field ENUM('active', 'inactive', 'pending'),
      set_field SET('read', 'write', 'execute', 'delete'),
      -- Boolean type
      is_active BOOLEAN DEFAULT TRUE,
      -- Spatial data type (if using GIS)
      -- point_field POINT,
      -- Constraints
      UNIQUE KEY unique_varchar (uuid),
      INDEX idx_l1_id (l1_id),
      INDEX idx_l2_id (l2_id),
      INDEX idx_l3_id (l3_id),
      INDEX idx_l4_id (l4_id),
      INDEX idx_l5_id (l5_id),
      INDEX idx_date (datetime_field),
      INDEX idx_time (timestamp_field),
      INDEX idx_enum_field (enum_field),
      INDEX idx_set_field (set_field),
      INDEX idx_year_field (year_field),
      INDEX comp_attributes(continent,enum_field,set_field),
      INDEX comp_color(color,continent,enum_field,year_field)
)

As you can see the main table has many more attributes and datatypes than the simple test existing in the basic sysbench and more than my other windmills test.

It also has several attributes with variable length, this is to be able to emulate cases where unordered pages are present, which is the common case in production. (see also https://www.tusacentral.net/joomla/index.php/mysql-blogs/186-innodb-page-merging-and-page-splitting). To achieve that you just need to generate write traffic on the main tables, this is not available yet in the test but is not difficult to implement. As such at the moment we should consider the test executed always on Ordered pages.

Level table structure:

CREATE TABLE `%s%d` (
      `id` %s,
      continent VARCHAR(45) NOT NULL,
      parent_id BIGINT,  -- For hierarchical structure if needed
      time_accessed TIMESTAMP DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
      l1_id INT,
      l2_id INT,
      l3_id INT,
      l4_id INT,
      l5_id INT,
      record_name CHAR(36),
      record_code CHAR(5),
      record_value BIGINT,
      record_status ENUM('active', 'inactive', 'pending'),
      record_priority INT NOT NULL,
      INDEX idx_country (continent),
      INDEX idx_parent_id (parent_id),
      INDEX idx_l1_id (l1_id),
      INDEX idx_l2_id (l2_id),
      INDEX idx_l3_id (l3_id),
      INDEX idx_l4_id (l4_id),
      INDEX idx_l5_id (l5_id),
      INDEX idx_time_accessed (time_accessed),
      INDEX idx_record_status (record_status),
      INDEX idx_record_priority (record_priority),
      INDEX comp_record_continent_status_priority(continent,record_status,record_priority)

In this case the table structure is much simpler (than main) and it has only one attribute (Country) which is Variable, this to reduce the possibility to have unordered pages to the minimum.

The Tests

Now combining the tables I have built the following scenarios:

·         insert_update_delete_queries

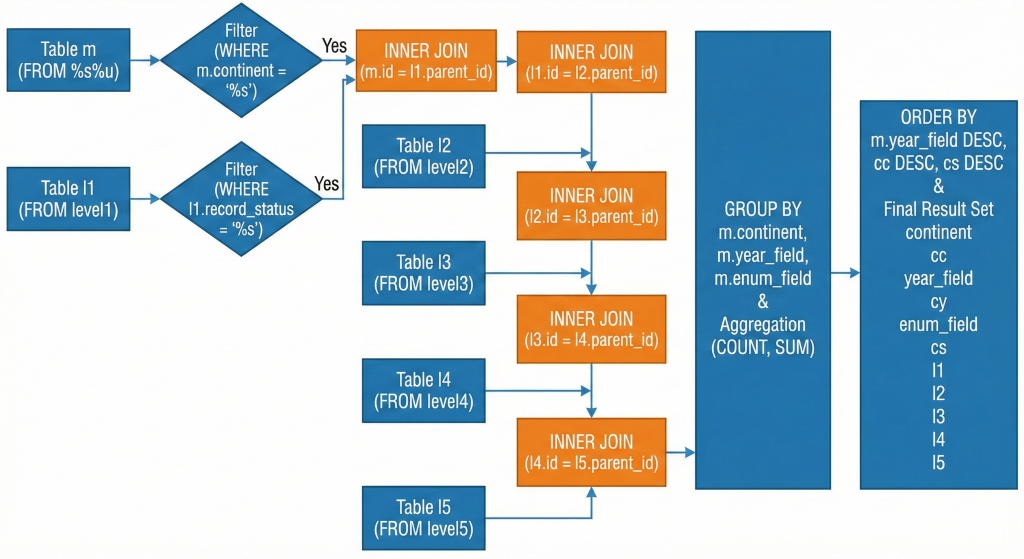

·         inner_queries

·         left_queries

·         right_queries

Pro-Tip from Celko: Avoid RIGHT JOIN whenever possible. It is mathematically equivalent to a LEFT JOIN with the tables swapped. Using only LEFT JOIN makes your queries more readable and follows the "natural" left-to-right reading order of SQL.

·         semi_join & anti join condition_queries

·         subquery_queries

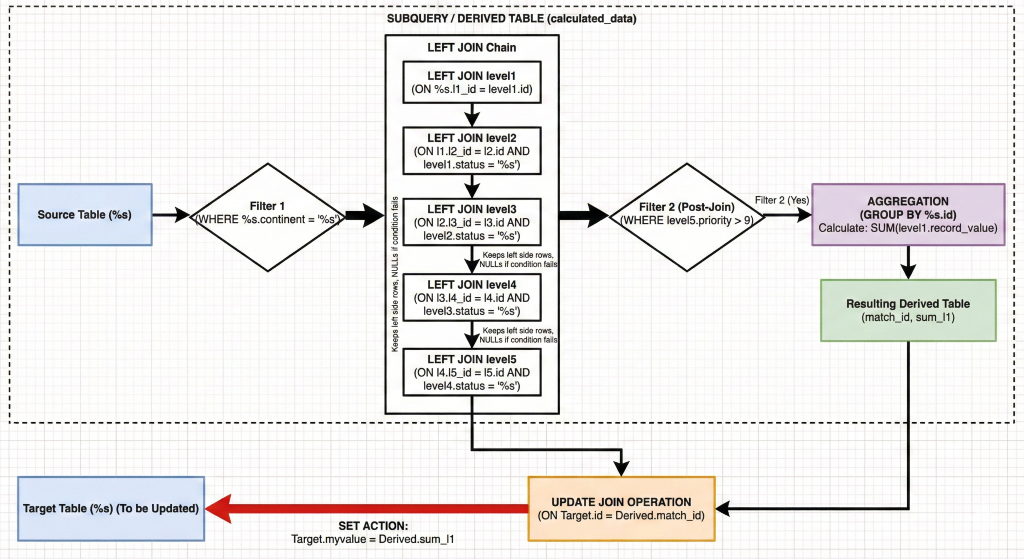

Using the above I have built the following scenarios:

•    anti_join_left_join_pk
•    anti_join_not_exists_pk

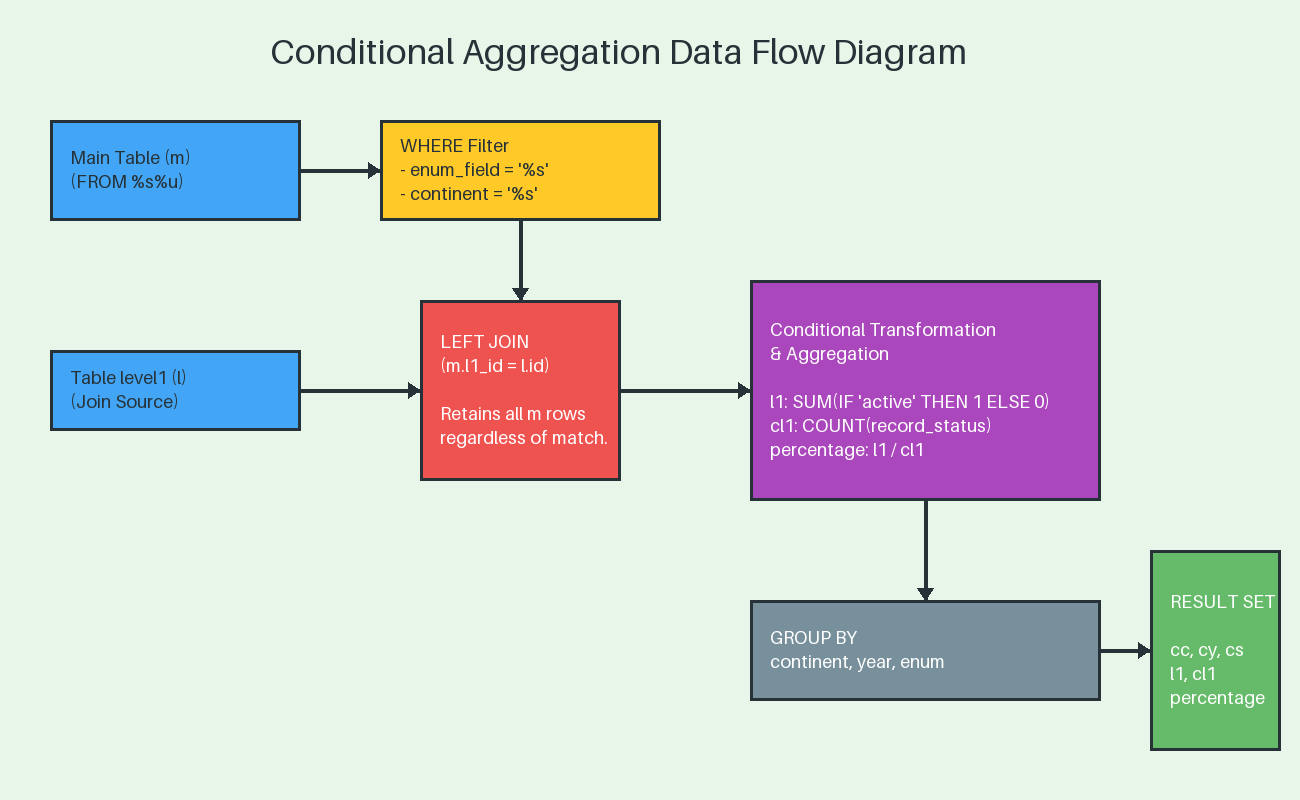

•    conditional_join_pk
•    inner_subquery_multi_pk
•    left_subquery_multi_pk
•    multi_left_forcing_order
•    multi_left_index
•    multi_left_pk
•    multi_left_straight
•    multilevel_inner_forcing_order_index
•    multilevel_inner_index
•    multilevel_inner_pk
•    multilevel_inner_straight_index
•    multi_right_forcing_order
•    multi_right_index
•    multi_right_pk
•    multi_right_straight
•    right_subquery_multi_pk
•    semi_join_exists_pk
•    simple_inner_forcing_order
•    simple_inner_index
•    simple_inner_index_GB
•    simple_inner_pk
•    simple_inner_pk_GB
•    simple_inner_straight
•    simple_left_exclude
•    simple_left_forcing_order
•    simple_left_index
•    simple_left_index_GB
•    simple_left_pk
•    simple_left_pk_GB
•    simple_left_straight
•    simple_right_forcing_order
•    simple_right_index
•    simple_right_index_GB
•    simple_right_pk
•    simple_right_pk_GB
•    simple_right_straight
•    update_multi_inner_join_pk
•    update_multi_left_join_pk
•    update_multi_right_join_pk

Where simple means only one level of joins while multi is all the five levels.

If you want to review them you can easily do it reviewing the file in github (https://github.com/Tusamarco/sysbench/blob/master/src/lua/joins/join_queries.lua)

Please keep in mind a couple of things:

1. This is just a start; I do not pretend to cover all and I am open to add whatever it will be identified as useful.

2. You are encouraged to test and modify any part of the code, query, table structure and share your changes, the more we work on this together the better it will be.

How to use it

First clone the repo as usual, build sysbench and install it, instructions here(https://github.com/Tusamarco/sysbench/tree/master?tab=readme-ov-file#build-and-install).

Unless you do it manually the tests in the src/lua/… will not be copy over if you want you can modify the file https://github.com/Tusamarco/sysbench/blob/master/src/lua/Makefile.am to have them installed with make install.

As usual the first step is to create and populate the schema:

sysbench /opt/sysbench/src/lua/joins/oltp_read_write.lua  --mysql-host=<ip> --mysql-port=<port> --mysql-user=<user> --mysql-password=<pw> --mysql-db=joins --db-driver=mysql  --report-interval=1  --table_name=main  --tables=15 --table_size=100000 --threads=15  prepare

This will create 15 main tables and 5 levelX tables, both with 100000 rows.

I suggest you create a schema with a decent number of rows, in general the dimension of all rows in a table should exceed the allocated memory buffer. So, if you have a 10GB Innodb buffer pool, it would be nice to have each table to be at least 15GB.

Always do a warmup, that will fill the BP with data, most likely from the last main table, but this is fine, you just want the BP to be hot.

Once done you can run the tests.

To evaluate the join execution, I think that the most immediate metric is the execution time. Given that when you run the test you should set –time=0 –events=X where X is the number of events you want to execute.

How many queries will an event have? Easy, if you define it as a parameter, by default all the joins are set to 0, which means disable and you need to enable it.

For instance if you want to execute simple_inner_pk test, you need to set --simple_inner_pk=1 where 1 is the number of occurrence, so if you set it to 1 you have one event one query, if you set --simple_inner_pk=2 you have that each event generate 2 queries… and so on.

Given the time taken is captured for the whole test, my advice is to keep the occurrence to 1 and eventually check/test how the platform scales by concurrent threads.

To do so, you need to set the number of events and threads to the same value.

See a full example below:

sysbench /opt/sysbench/src/lua/joins/oltp_read_write.lua  --mysql-host=<ip> --mysql-port=<port> --mysql-user=<user> --mysql-password=<pw> --mysql-db=joins --db-driver=mysql  --skip_trx=off --report-interval=1  --histogram --table_name=main  --stats_format=csv --tables=15 --table_size=1000000 --time=0 --multilevel_inner_pk=1 --events=5 –threads=5 run

This will record the time taken to execute 5 queries in parallel.

While you can enable more than one test at the same time, to me this is not useful given it will be not clear who is taking longer unless you do not keep track of that in other ways, like slow query log or performance schema.

How to modify it

You want to modify the queries or table structure?

Do it! Just modify the file joins_queries.lua. There you will find the table definition for the main and level table.
The only thing to be careful of is to change the variables in the load_global_variables() to match your changes and of course you will need to modify the initialize_values_X for main and level table.

If instead you only want to change the queries you have two ways.

1. Add your query to an already existing map

2. Create a new map

Method 1.

Say you want to add a query for the left joins. Identify the left_queries = {…} map and add the query you want to add:

["my_custom_left_query"] = [[SELECT m.continent,year_field, m.enum_field, level1.record_value l1
FROM %s%u as m
LEFT JOIN level1 ON m.l1_id = level1.id and m.enum_field = '%s'
WHERE m.continent = '%s'
ORDER BY m.year_field DESC, l1 DESC
LIMIT 100;]],

Here I am not adding anything special, so I just need to add a pair of [KEY] = <SELECT> using the same attributes.

In case you need to change the attributes, then you need to create a case in the function that fill the query. The function is: function execute_joins(join_name) in joins/oltp_common.lua.

For instance if I want to have my custom query filtering by the attribute color in the main table, I can do:

["my_custom_left_query"] = [[SELECT m.continent,year_field, m.enum_field, level1.record_value l1
FROM %s%u as m
LEFT JOIN level1 ON m.l1_id = level1.id and m.enum_field = '%s'
WHERE m.color = '%s'
ORDER BY m.year_field DESC, l1 DESC
LIMIT 100;]],

In the function I can add a case like:

  if join_name:find("my_custom_left") then
      for i = 1, sysbench.opt[join_name] do
         local tnum = get_table_num()
         query = string.format(query_map[join_name .. "_query"], sysbench.opt.table_name, tnum, get_record_status(), get_color())
         -- print("DEBUG JOIN QUERY B: " .. query .." Join Name: " .. join_name)
         con:query(query)
      end

Done!

Method 2

Just respect the rules as above but instead of using the existing map, you can create your own and then add it to the list query_map = mergeMultiple. As simple as that.

How to help

As said before, this is far from a perfect or exhaustive test, it is a start and the more feedback I get the more I will be able to improve it.

I would really like to get PR or FR with specific tasks, the closer they are to real life cases the better.

In the meantime, I wish you all happy testing.

References

Joins sysbench code

MySQL 8.4: JOIN Clause – The definitive reference for INNER, LEFT, RIGHT, and CROSS joins.

Outer Join Optimization – Explains how the optimizer handles LEFT JOIN and RIGHT JOIN and how to write efficient predicates.

Nested-Loop Join Algorithm – For those interested in the "under the hood" execution of joins in MySQL.

Index Merge Optimization – Crucial for understanding how indexes are used (or not used) during complex joins.
